* Hot dipped galvanized
* Electro galvanized
* Stainless steel.
* Made of high quality material.
* Conforming to all safety requirements.
* Variety of models of blades, diameter and material.
* Reinforcement of core wire.
* Uniform bright galvanizing.
* Extreme corrosion resistant.
* Long life.
* Easy to install.
* For locations with security requirements.

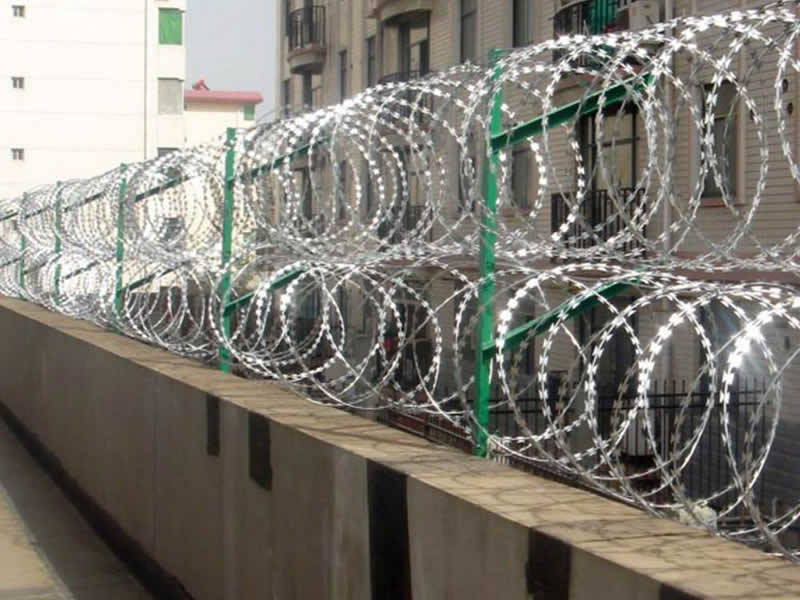

* Military areas, prisons, naval ports, airports and nuclear plants.
* The control of borders and riot.
* General use.
| Blade Style | Blade Thickness | Wire Thickness | Blade Length | Blade Width | Blade Spacing |
| ref. | mm | mm | mm | mm | mm |
| BTO-12 | 0.5 | 2.5 | 12 | 13 | 26 |
| BTO-18 | 0.5 | 2.5 | 18 | 15 | 33 |
| BTO-22 | 0.5 | 2.5 | 22 | 15 | 34 |
| BTO-30 | 0.5 | 2.5 | 30 | 18 | 45 |
| CBT-60 | 0.6 | 2.5 | 60 | 32 | 100 |
| CBT-65 | 0.6 | 2.5 | 65 | 21 | 100 |
| Coil Diameter | No. of Loops | Standard Length | Blade Type | No. of Clips | Notes |
| mm | m | ref. | |||
| 450 | 56 | 8-9 | BTO-12; 18; 22; 30 | 3 | Cross type |
| 500 | 56 | 9-10 | BTO-12; 18; 22; 30 | 3 | Cross type |
| 600 | 56 | 10-11 | BTO-12; 18; 22; 30 | 3 | Cross type |
| 600 | 56 | 8-10 | BTO-12; 18; 22; 30 | 5 | Cross type |
| 700 | 56 | 10-12 | BTO-12; 18; 22; 30 | 5 | Cross type |
| 800 | 56 | 11-13 | BTO-12; 18; 22; 30 | 5 | Cross type |
| 900 | 56 | 12-14 | BTO-12; 18; 22; 30 | 5 | Cross type |
| 960 | 56 | 13-15 | BTO-12; 18; 22; 30 | 5 | Cross type |
| 980 | 56 | 14-16 | BTO-12; 18; 22; 30 | 5 | Cross type |
| 450 | 33 | 7-8 | CBT-60; 65 | N/A | Single coil |
| 500 | 56 | 12-13 | CBT-60; 65 | N/A | Single coil |
| 700 | 56 | 13-14 | CBT-60; 65 | N/A | Single coil |
| 960 | 56 | 14-15 | CBT-60; 65 | N/A | Single coil |
